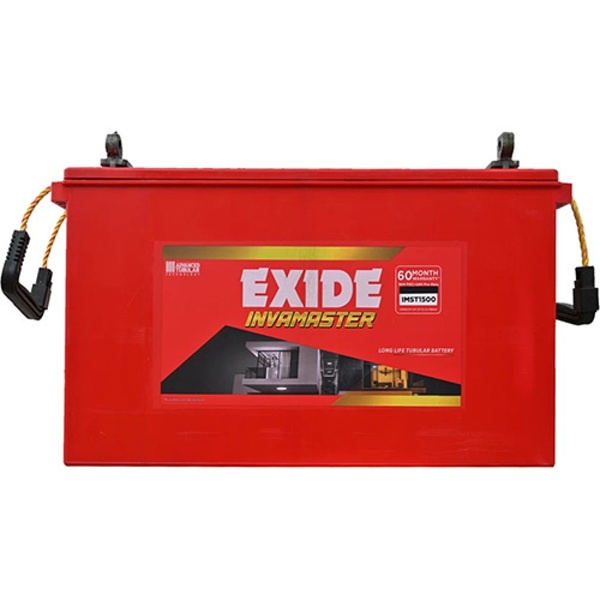

Exide IMST1500 Tubular Inverter Battery (150 AH)

Exide IMST1500 Tubular Inverter Battery (150 AH)

(4 review)
Sorry! Delivery not available to this area!
  • Battery Type: Tubular Technology
  • Battery Capacity: 150Ah
  • Brand : Exide
  • Warranty: 60 Months*(36 Flat+24 Pro-rata)
  • Product Model: Exide IMST1500

Delivery not available

SKU: IMST1500

Exide Inva Master IMST 1500 150Ah Tubular Battery

  • Economical Range
  • Tubular Plate Design
  • Suitable for long power outages
  • 800 Cycles @ 80% DOD
  • Short Height Containers - Saves Space

    Why Tubular Batteries are most suitable in Inverter Application?
    A tubular battery uses technology that seals the active material in polyester tubes called gauntlets, instead of pasting it on the surface of the plate. As a result, there's no shedding or corrosion, ensuring long battery life. Owing to their toughness and durability, tubular batteries can operate at extreme temperatures, and are used in high cyclic applications involving frequent and prolonged power outages.

    The Exide Torr Tubular Advantage
    All tubular batteries behave similarly to start with, but obviously, not all tubular batteries are the same. The difference lies in the composition of the alloy in the positive support structure, as well as in the way that the main back bone of the plates, called the SPINE, is cast.

    With the help of Torr Tubular technology, Exide tubular batteries use the high pressure 'HADI' casting process at 100 bar, while most other manufacturers use gravity of low pressure casting processes. The spines in Exide tubular batteries are cast from low antimony lead alloy, with selenium, copper, tin, and arsenic, to protect the lead support from anodic corrosion.

    A scanning electron microscope (SEM) study reveals the differences in machines that use gravity or low pressure casting, and those that are 'HADI' casting.

Battery Warranty Terms

Free Replacement 36 Months
Pro-Rata Warranty 18 Months
Not Covered in Warranty Any Damage condition
Service Type Onsite By Manufacturer or Brand

Battery Dimensions

Battery Weight - Dry 40 Kg
Battery Weight - Wet 50 Kg
Width 35 cm
Height 55 cm
Depth 65 cm

Battery Technical Details

Capacity 150 Ah
Technology Flat Tubular
Voltage Output 12V
Maintenance Free No.
Suitable For Inverter | Home UPS
Recommended Inverter Rating 600 to 900 Va
Electrolyte Volume 15 L
Charge Eye Indicator No.
Initial Charging Rate 12 A
Electrolyte Level Indicator Yes

In The Box

Sales Package Battery, Water Level Indicator, Warranty Card

Manufacture Info

Country of Manufacture India
Manufacture By Exide Industries Limited

Back-Up Time (Approx)

2 Fan + 4 Tubelight + 1 TV 4:45 to 5:15 Hours
4 Fan + 4 Tubelight + 1 TV 3:00 to 3:30 Hours
7 Fan + 5 Tubelight + 1 TV 1:30 to 2:00 Hours
